1. Verification of the physical principle of the core formula
Law of Conservation of Mass
All formulas are based on the physical nature of m=ρ×V (mass = density × volume)
Density value
Theoretical density of pure aluminum: 2,698 kg/m³ (20℃)
The approximate value of 2,700 kg/m³ is reasonable for industrial calculations (error < 0.1%)
2. Verification of the Rigorousness of Geometric Formulas

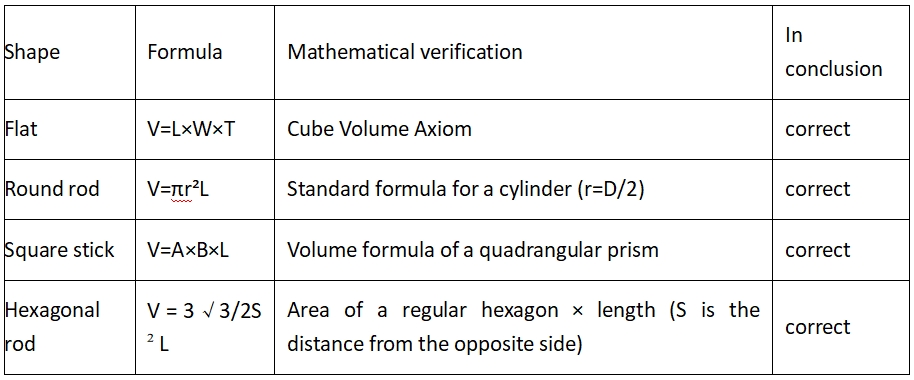

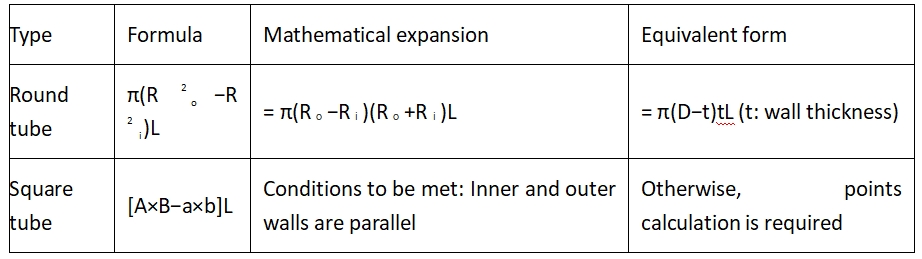

2.1. Standard geometric volume formula
Square tube formula restrictions:
This is true when the tube wall thickness is uniform and the inner angle is a right angle (the actual square tube has a rounded transition, and the theoretical error is about 1-3%)

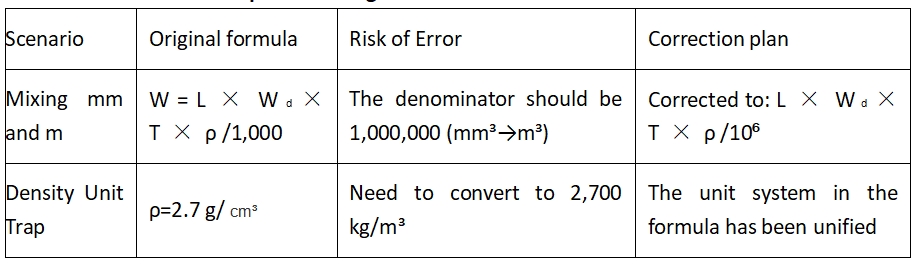

3. Unit System Consistency Verification
Cross-unit calculation risk point investigation
4. Engineering Suitability Amendment

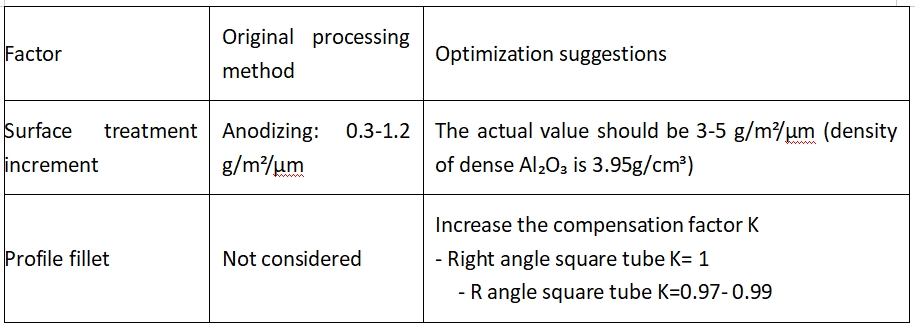

4.1. Compensation for non-ideal factors
4.2. Quantification of tolerance impact
Thickness tolerance ±10% → Weight deviation ±(8% ~ 12%) (thin-walled parts are more sensitive)
Solution: W actual = W theoretical × (1 + Δt / t) ( Δt : thickness deviation)
5. Boundary Condition Test

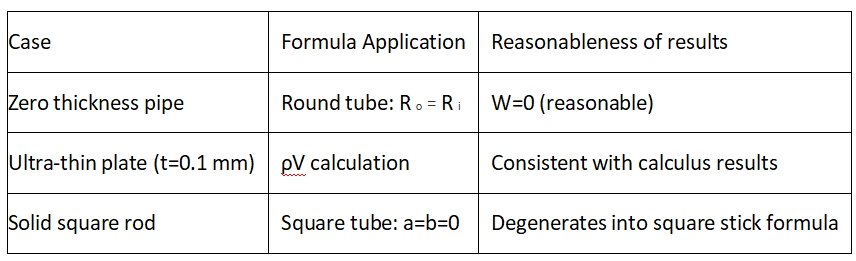

Extreme case verification:
Density anomaly scenario
7xxx alloy (7075): Measured density 2.810 g/cm³ → If 2.7g/cm³ is used by mistake, the error is +4.1%.

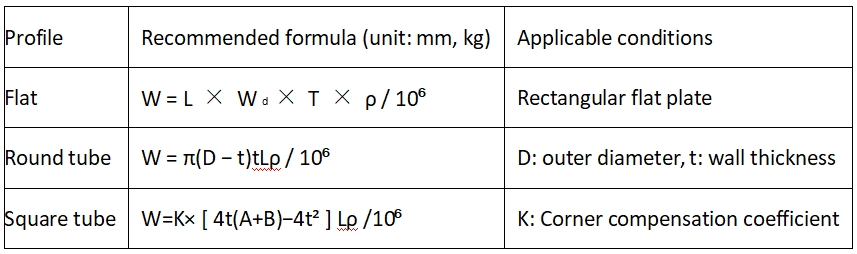

Formula table
4t(A + B)- 4t² is a standard engineering calculation that is calculated by multiplying the perimeter of the section by the wall thickness and then deducting the four corners.
Calculation example:
1.6061 aluminum plate (1000 × 500 × 10 mm, length 2 m): W = 1000 × 500 × 2 × 0.0027 = 27 kg
2.7075 round tube (outer diameter 50 mm, wall thickness 3 mm, length 1.5 m): W = [(50-3)×3×3.1416×1.5]×0.00283 ≈ 5.65 kg
3. Square tube (40×40×2mm, length 3m): W = [2×2×(40+40-4)×3]×0.0027×0.98 ≈ 2.42 kg
Recommended Workflow
1. Select density → 2. Measure actual size → 3. Select compensation factor → 4. Calculate by formula
